Description

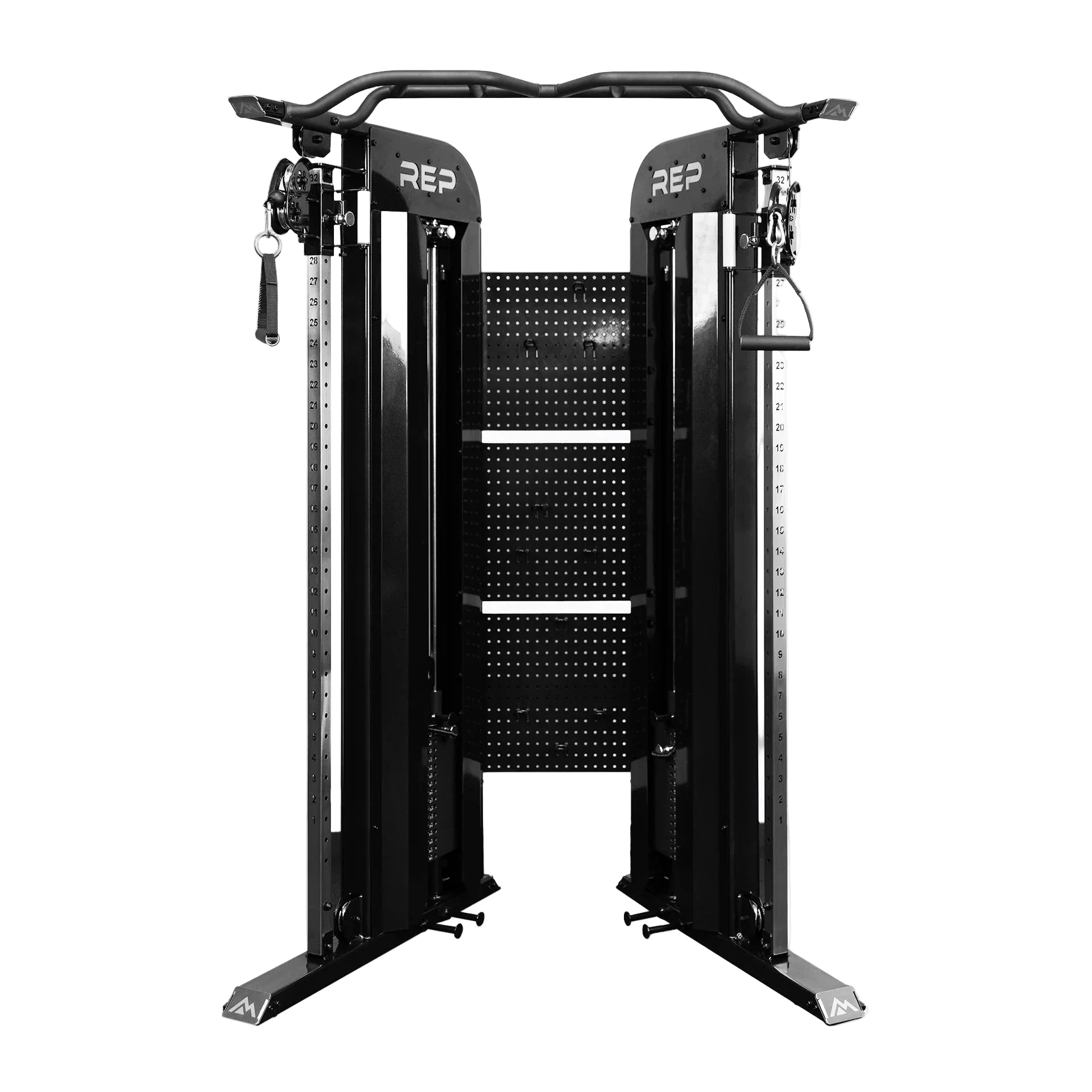

The Arcadia is REP’s first in-house designed functional trainer, built from the ground up by their Colorado engineering team. Compact but powerful, it features 32 cable positions with dual weight stacks (170lbs each at a 2:1 ratio, upgradeable to 220lbs each). Micro-adjust with premium 5lb add-ons or increase resistance up to 540lbs using the integrated band pegs.

High-end details include patent-pending trolleys with knurled handles and oversized pop-pins, aluminum pulleys with a 180° swivel, and laser-cut numbered uprights for easy adjustments. It also includes multiple pull-up grip options, two steel D-handles, and three heavy-duty pegboards for attachment storage.

Finished in a premium metallic black powder coat, the Arcadia delivers smooth function, heavy stacks, and top-tier durability—all in a compact footprint built for both home and commercial gyms.

Features

POSITIONS AND CABLE RANGE: The Arcadia™ is versatile, with 32 different cable positions. This allows for more customization and natural movements, especially when working smaller muscles. The handles can go high and low enough to ensure you maximize your range of motion.
MULTI-GRIP: Challenge different grip, arm, and back muscles using multiple pull-up options integrated right into the functional trainer.
WEIGHT STACKS: Dual weight stacks top out at 170lbs each (with an option to upgrade to 220lbs each) at a 2:1 ratio, heavy enough for even experienced lifters. Hot-rolled steel plates assure high accuracy. Premium 5lb (feels like 2.5lbs) dropdown, add-on weights allow for micro-adjustments.
BUILT-IN STORAGE: The built-in storage keeps your small attachments and accessories organized and accessible. Customize your setup by easily repositioning the pegs to meet your preferences and needs.
ATTACHMENT COMPATIBILITY: The Arcadia™ is compatible with tons of cable attachments, such as the ankle cuff, sports handle, tricep rope, tricep pushdown bar, multi-grip curl bar, and much more.
INTEGRATED BAND PEGS: The integrated band pegs on the base and headplate provide the option to create added resistance with bands up to a max weight capacity of 540lbs.

Specifications

Height: 80.8" or 78" With Multi-Grip Bar Inverted
Front Width: 55.3"
Rear Width: 24"
Depth: 35.8"
Actual Stack Weight Per Side: 170lbs
Ratio: 2:1
Max Usable Weight Per Side: 85lbs & 110lbs With Upgraded Stack (Not Including Add-On Weights)
Minimum Usable Weight Per Side: 10lbs
Number Of Height Options: 32
Highest Trolley Point: 68"
Lowest Trolley Point: 13"
Cable Travel Length: 81"

Warranty

Lifetime Structural Warranty
